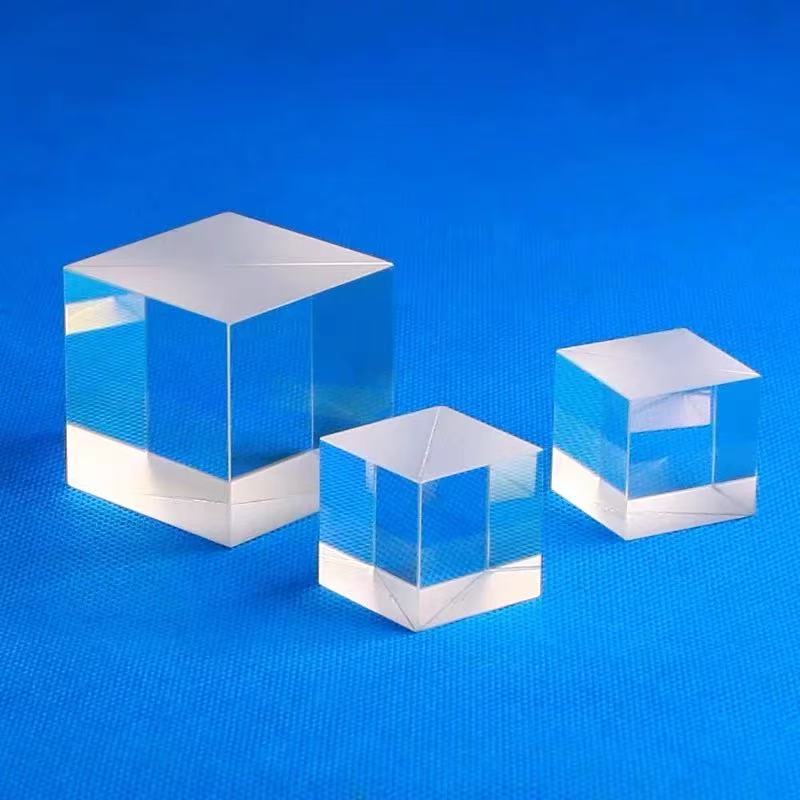

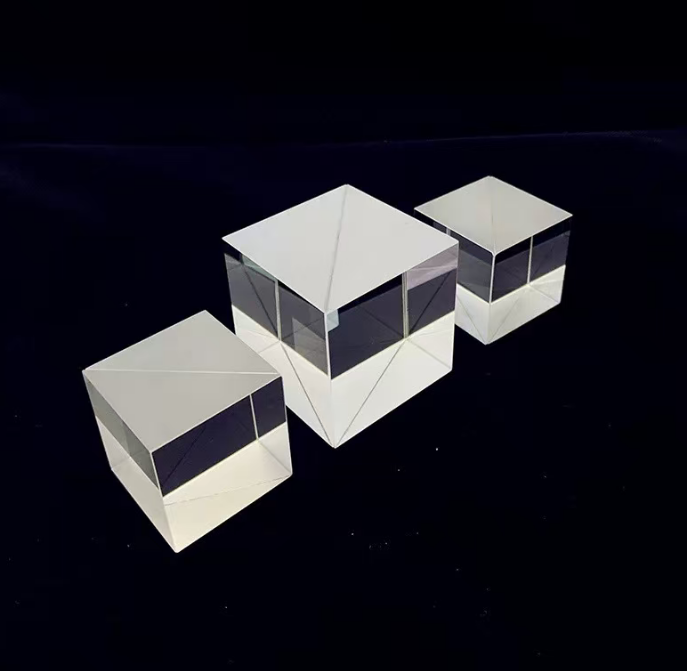

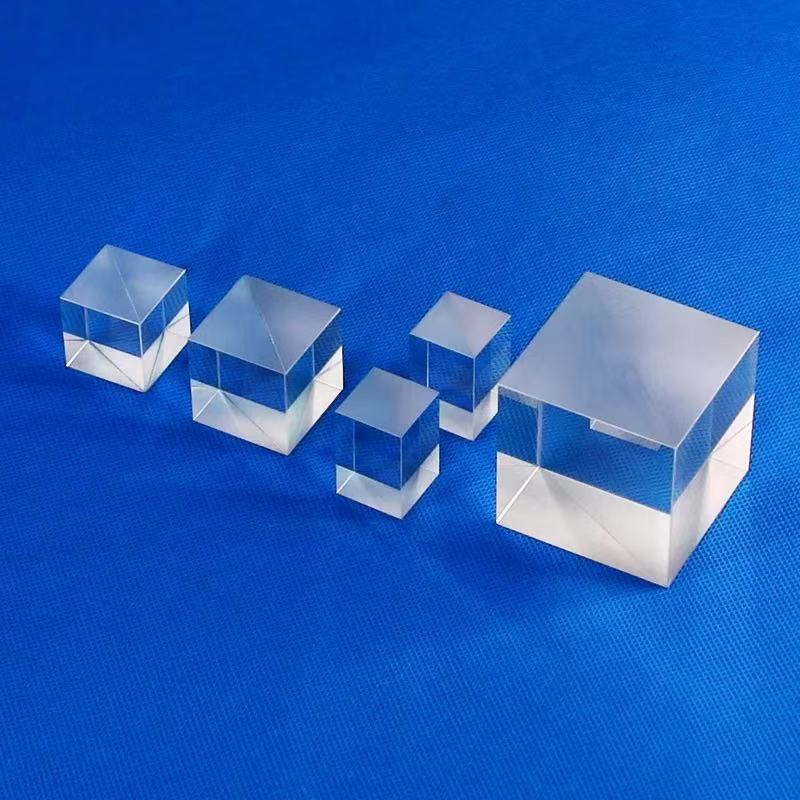

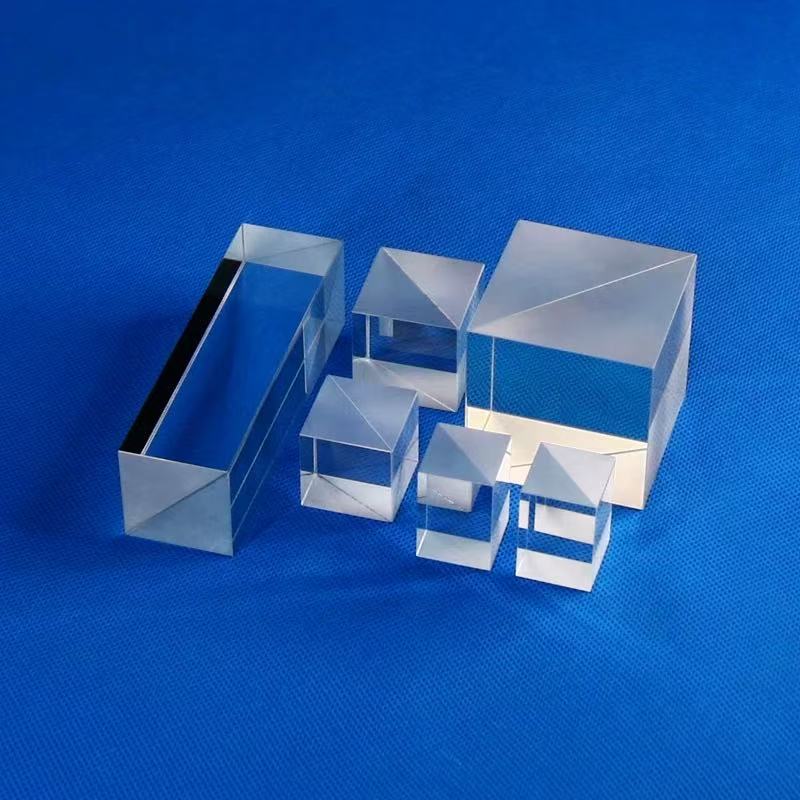

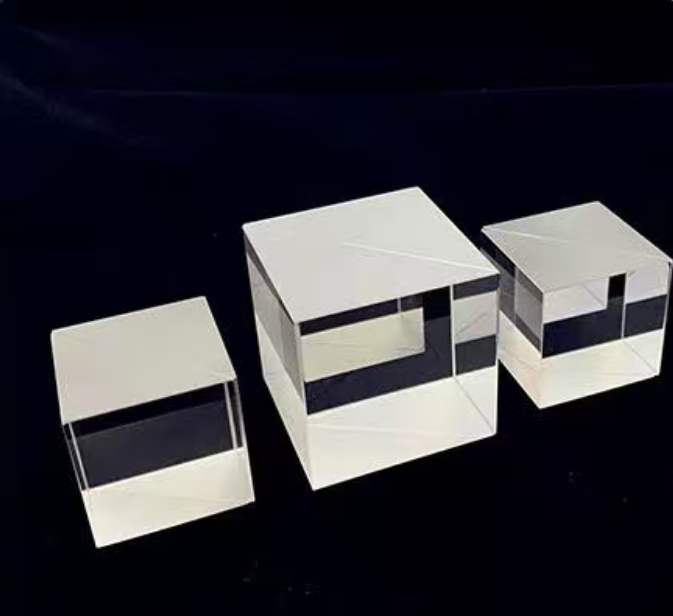

نموذج: BeamSplitter Prism Cubes
فترة الضمان: 3 سنوات
دعم التخصيص: OEM, التصميم, OBM
مكان المنشأ: الصين
جودة السطح: 60/40
The file is encrypted. Please fill in the following information to continue accessing it
| Parameter | Value |
| Material | N-BK7 Grade A Optical Glass (or equivalent) |
| Dimensions | 5mm to 50.8mm (Custom sizes available) |
| Surface Quality | (S/D) 40/20 or 60/40 |
| Surface Flatness | λ/4 @ 632.8nm |
| Transmitted Wavefront Error (TWE) | ≤ λ/4 |
| Clear Aperture | >90% of central dimension |
| Coating Type/AR Coating (Input/Output) | Broadband Dielectric or Hybrid (metal-dielectric)/R < 0.5% @ specified wavelength range |
| Part Number | Size | Wavelength | Split Ratio |
| BS-5050-05 | 5mm x 5mm | 400-700nm | 50/50;70/30;60/40 |
| BS-5050-10 | 10mm x 10mm | 400-700nm | 50/50;70/30;60/40 |
| BS-5050-20 | 20mm x 20mm | 400-700nm | 50/50;70/30;60/40 |
| BS-5050-25 | 25 25.4mm x 25.4mm | 400-700nm | 50/50;70/30;60/40 |
| Part Number | Size (LxWxH) | Wavelength | Split Ratio |
| NPBS-5050-10-NIR | 10mm x 10mm | 700-1100nm | 50/50 or upon the reqquire |
| NPBS-5050-12.7 | 12.7mm x 12.7mm | 632.8nm / 1064nm | 50/50 or upon the reqquire |
| NPBS-5050-20-NIR | 20mm x 20mm | 700-1100nm | 50/50 or upon the reqquire |
| NPBS-5050-50 | 50.8mm x 50.8mm | 400-700nm | 50/50 or upon the reqquire |
